TFE Ø3.25

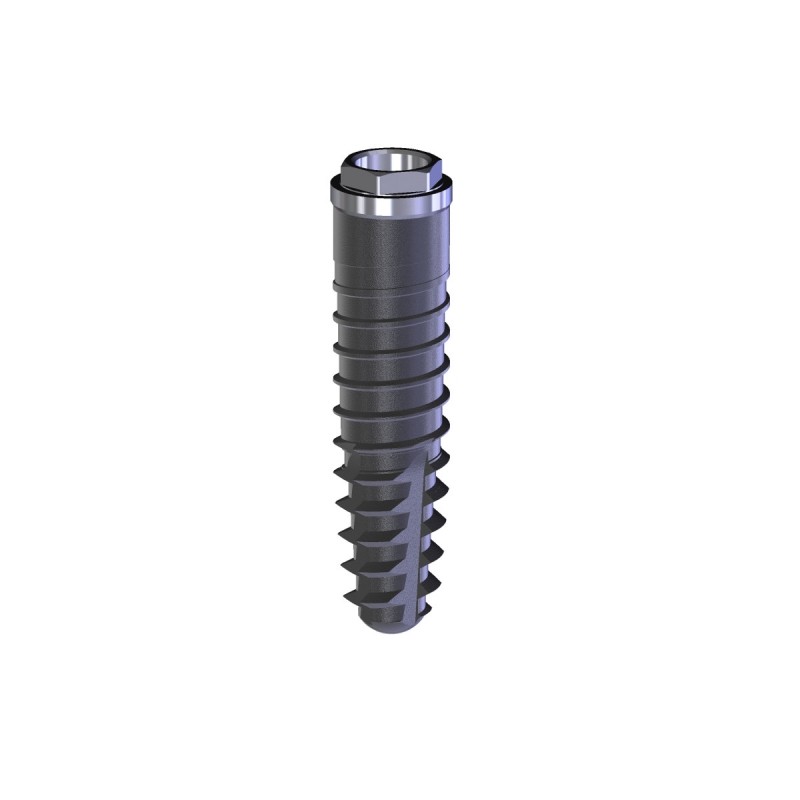

Conical External Hex Ø3.25

TFE3285 for height of 8.5 mm.
TFE3210 for height of 10 mm.
TFE3211 for height of 11.5 mm.
TFE3213 for height of 13 mm.
TFE3215 for height of 15 mm.


Platform Ø3.4 mm, implant Ø3.25 mm, hexagon 2.5 mm.
The coronal part features micro-threading to reduce bone reabsorption and hence improve long-term performance.
The implant can be defined as self-taping and easy to insert thanks to its apical incisions, which also guarantee high anti-rotational properties

Straight abutment

Cod. TCFEMD342 - H2
Cod. TCFEMD344 - H4
Cod. TCFEMD346 - H6

Angled abutment 15°

Cod. TCFEMA15°342 - H2
Cod. TCFEMA15°344 - H4
Cod. TCFEMA15°346 - H6

Angled abutment 25°

Cod. TCFEMA25°342 - H2
Cod. TCFEMA25°344 - H4
Cod. TCFEMA25°346 - H6

Castable abutment

Cod. TCFECA34N

Moncone calcinabile rotante

Cod. TCFECA34R

Non-rotating provisional abutment

Cod. TCFEMP34N

Rotating provisional abutment

Cod. TCFEMP34R

Ucla titanium base abutment with cannula

Cod. TCFEUC34N

Ball abutment

Cod. TCFEMS341 - H1
Cod. TCFEMS342 - H2
Cod. TCFEMS343 - H3
Cod. TCFEMS344 - H4


Ball abutment cap

Cod. MSCAP01

Stainless box for ball abutment cap

Cod. MSCON01

Straight MFA

Cod. TCFE00°3420

Angled MFA 17°

Cod. TCFE17°3420

Castable abutment for MFA

Cod. TIS900002

Provisional abutment for MFA

Cod. TIS100222

Prosthetic screw M1,4 for MFA

Cod. TIS100003

Positioner for angled MFA

Cod. TPOMFA

Transfer pick-up techinque

Cod. TCFETR34

Transfer pull-up technique

Cod. TCFETRST34

Transfer screw

Cod. TCFEVTRST

Analogue for implant Ø3,4

Code TCFEAN34

Healing screw

Cod. TCFEVG342  - H2
Cod. TCFEVG344  - H4
Cod. TCFEVG346  - H6

Transfer for MFA

Cod. TIS900003

Transfer screw for MFA

Cod. TIS900004

Analogue for MFA

Cod. TIS900001

Healing screw H4 with ring

Cod. TIS100304

Pick-up transfer screw

Cod. TCFEVPL

Prosthetic screw with torx connection

Cod. TCFEVPR

Placement key for angled MFA

Cod. TPOMFA

Screw for angled MFA

Cod. TIS100001

Castable cannula for MFA

Cod. TIS900002

Drill extension

Cod. TPRFR

Lanceolate drill

Cod. TFRLANC

Cylindrical drill

Cod. TFRC20

Drill for conical connection implant Ø3,25

Cod. TFRF32

Conical threadformer Ø3,25

Cod. TFEIMS32

Short hand driver

Cod. TDR12C

Long hand driver

Cod. TDR12L

Driver for hand and ratchet

Cod. TCR12L

Micromotor driver for mounter and treahdformer

TCONTR

Parallelism indicator

Cod. TIND

Depth gauge

Cod. TMPRF

Mounter blocking key

Cod. TCHBM

Dynamometric ratchet

Cod. TDINA

Driver for straight MFA

Cod. TCRMFA

Ball abutment driver

Cod. 771CEF

STOP TFRC20

Cod. TSTOPC20XX
(07/85/10/11/13/15)

STOP TFRK35

Cod. TSTOPC35XX
(07/85/10/11/13/15)

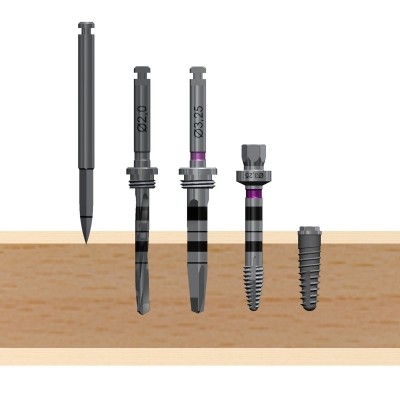

Surgical sequence Ø 3.25

For the correct insertion of the conical external hexagon Ø 3.25 implant, we recommend following the surgical protocol:

1. Use the lanceolate drill (TFRLANC) up to the marking (recommended n. revs = 800 rpm).
2. Use the 2 mm start-up drill (TFRC20) with the appropriate stop of the same height as the implant being inserted (recommended n. revs = 800 rpm).
3. Insert the parallelism indicator and check for any disparallelism.
4. Use the final conical drill Ø 3.25 (TFRF32) with the appropriate stop (recommended n. revs = 200-400 rpm).
5. In the case of D1 bone density, use the threadformer (TFEIMS32).
6. Insert the implant. Recommended n. of revs 15-25 rpm.
7. Close with the screw cap included in the package.
